Digital 8/12/16/20/24 channel cable tv digital MPEG4 AVC/H.264 hd to IP encoder 8 in 1 COL5181H manufacturer from China Colable Electronics Co., Ltd

Payment Terms:	T/T,L/C,WU,Paypal,Money Gram
Place of Origin:	Sichuan, China (Mainland)

Product Detail

Model No.: COL5181H

Production Capacity: 10000/month

Delivery Date: 2-7 days after advance paym...

Audio Encoding: MPEG-1 Layer 2

Power consumption: 70W

Dimensions: 482mmx410mmx44mm

Multiplexing: 180 input per channel

Stream output: 8 SPTS (12/16/20/24 SPTS) I...

Means of Transport: Ocean,Land,Air;EXPRESS

Packing: Standard export carton with...

Video Encoding: MPEG-4 AVC/H.264

Power requirement: AC 110V±10%, 50/60Hz or AC ...

Temperature range: 0~45℃(Operation), -20~80℃(S...

Approx weight: 8Kg

Input: 8 HD MI inputs ( 12/16/20/2...

1. 8/12/16/20/24× HDMI video inputs with 8/12/1620//24 SPTS and 1 MPTS output through Data 1 or Data 2
2. Support MPEG4 AVC/H.264 video encoding

Digital 8/12/16/20/24 channel cable tv digital MPEG4 AVC/H.264 hd to IP encoder 8 in 1

Outline

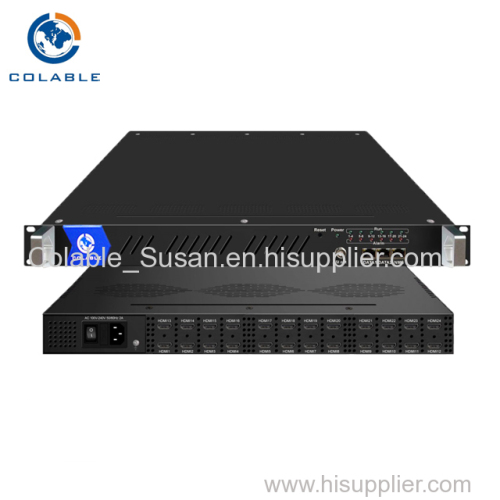

COL5181H H.264 HD IP Encoder is a professional HD audio & video encoding and multiplexing device.

It has 8 HDMI (12/16/20/24 HDMI optional) video input interfaces, supporting MPEG-4 video encoding

and MPEG 1 Layer 2 audio encoding. This device can simultaneously encode 8(12/16/20/24 HDMI

optional) channel HD audio & video; moreover, it has an IP output port can support 1MPTS and 8SPTS

(12/16/20/24 SPTS) IP out. In conclusion, its high integrated and cost effective design makes the device

widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital

TV broadcasting etc.

Features

ü 8/12/16/20/24× HDMI video inputs with 8/12/1620//24 SPTS and 1 MPTS output through Data 1 or Data 2

ü Support MPEG4 AVC/H.264 video encoding format

ü MPEG1 Layer II audio encoding format, support audio gain adjustment

ü Support 1 ASI output (optional) as copy of MPTS

ü Support IP output over UDP and RTP

ü Support QR code, LOGO, OSD insertion

ü Support "Null PKT Filter" function

ü Support PID Remapping

ü Support PCR accurate adjusting

ü Support PSI/SI editing and inserting

ü Control via web management, and easy updates via web

ü Lowest cost per channel, breakthrough price

Principle Chart

Technical specification

Input	8 HDMI inputs ( 12/16/20/24 input optional)
Video	Resolution	input	1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i,
		output	1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P,
	Encoding		MPEG-4 AVC/H.264
	Bit-rate		1Mbps~13Mbps each channel
	Rate Control		CBR/VBR
	GOP Structure		IP…P (P Frame adjustment, without B Frame )
Audio	Encoding		MPEG-1 Layer 2
	Sampling rate		48KHz
	Resolution		24-bit
	Bit-rate		64kbps,128Kbps,192kbps,224kbps,256kbps, 320kbps,384kbps
Multiplexing	Maximum PID Remapping		180 input per channel
	Function		PID remapping ( automatically or manually)
			Accurate PCR adjusting
			Generate PSI/ SI table automatically
Stream output	8 SPTS (12/16/20/24 SPTS) IP or 1MPTS output over UDP/RTP, 1*1000 Base-T Ethernet interface ASI output(optional) as copy of MPTS
System function	Network management(WEB)
	Chinese and English language
	Ethernet software upgrade
Miscellaneous	Dimension(W×L×H)			482mm×410mm×44mm
	Approx weight			8kg
	Environment			0~45℃(work);-20~80℃(Storage)
	Power requirements			AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
	Power consumption			70W
